Designing for the Installer

    How Better Ventilation System Design Reduces Labor Time and Complexity

    In residential and multi-family construction, ventilation systems are often evaluated based on airflow targets, energy performance, and code compliance. But once that design moves from drawings to the job site, a different set of challenges takes over: limited space, coordination between trades, and installation sequencing.

    This is where gaps between design intent and installed performance often emerge, not because the engineering is incorrect, but because the design didn’t fully account for how  the system would be built.

    A ventilation system design that considers installation reality can reduce labor time, improve consistency, and minimize rework while still achieving performance targets. In today’s construction environment, where schedules are compressed and labor availability is strained, that difference is significant.

    Where Design Meets Construction Reality

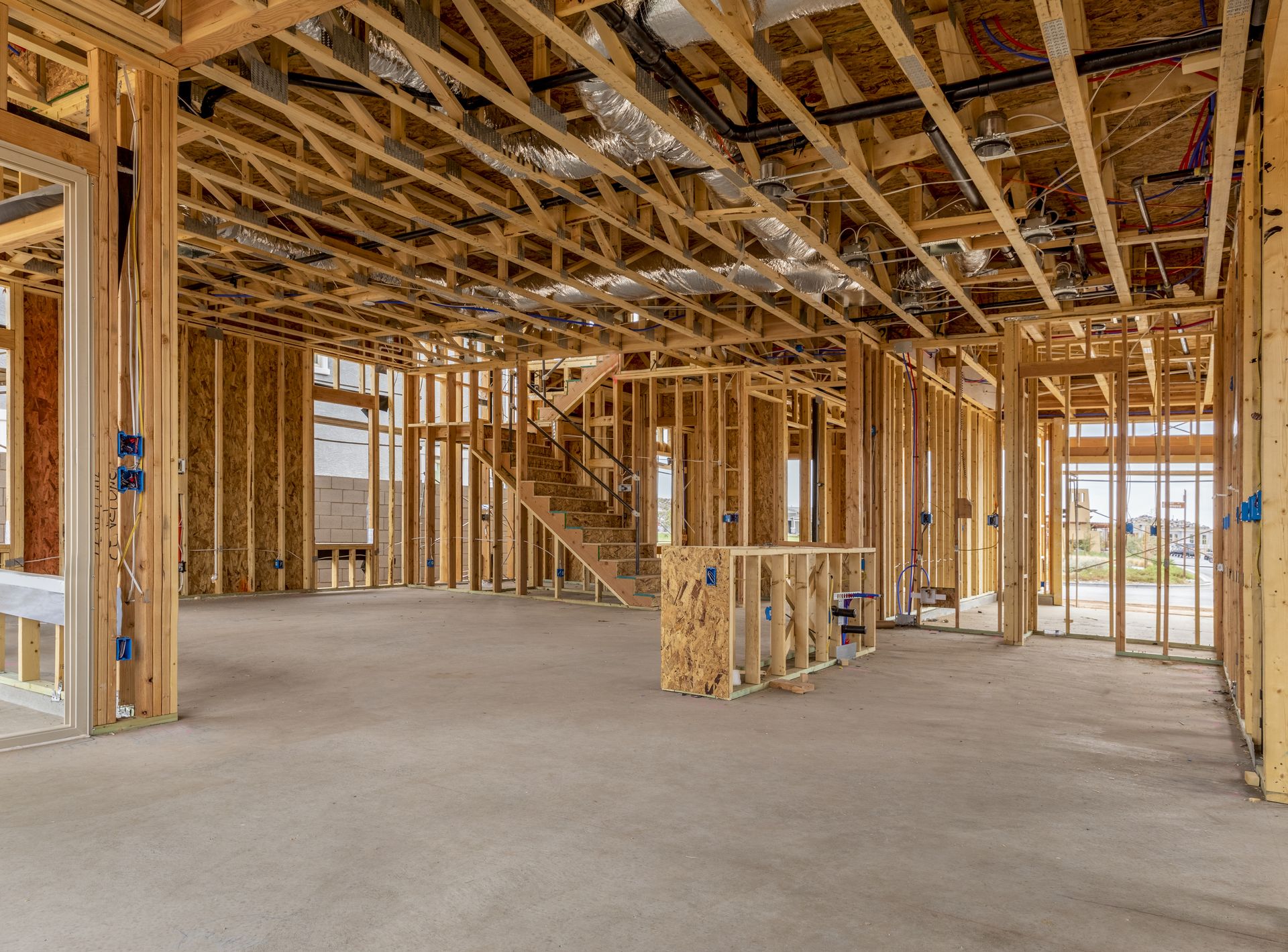

    Even well-designed ventilation systems encounter challenges during installation. Mechanical spaces that appear open during design can quickly become constrained once framing, plumbing, electrical, and other building systems are in place. At the same time, duct routes may conflict with structural components or planned trade pathways.

    In practice, installers are forced to adapt. Ducts get rerouted, fittings are added, and ideal layouts become compromised. As one contractor put it in a discussion featured by HVAC School, “The plans always look clean until you get above the ceiling.”1

    This is not just anecdotal. ASHRAE notes that duct systems should be designed to “route ducts as straight as possible to reduce pressure loss, noise, and first costs,” and warns that fittings and turbulence significantly increase system resistance and reduce performance consistency once installed.

    When those conditions change in the field, installation often takes longer and system performance becomes less predictable.

    Why Complexity Becomes a Performance Issue

    Complexity in ventilation system design doesn’t only affect installation time, it directly affects performance.

    Every additional bend, transition, or poorly planned routing decision increases static pressure in the system. Building science expert Allison Bailes of Energy Vanguard notes that “every elbow, fitting, and transition adds resistance to airflow.”2

    Industry guidance from the Sheet Metal and Air Conditioning Contractors' National Association (SMACNA) highlights that duct design decisions—such as layout, fittings, leakage control, and installation methods—directly influence both system efficiency and long-term performance outcomes.

    In practical terms, complexity introduces variability and variability is one of the hardest problems to solve in residential and multi-family ventilation systems.

    A system that performs well in one application but inconsistently in another often traces back not to equipment differences, but to installation-driven variations in duct routing, sealing, or balancing practices.

    The Installation Efficiency Opportunity

    A more installation-aware ventilation system design doesn’t reduce performance, it protects it.

    One of the most impactful design choices is routing efficiency. Straight, direct duct paths reduce both installation labor and pressure loss. ASHRAE research consistently reinforces that minimizing duct length and avoiding unnecessary fittings reduces turbulence and improves airflow consistency.

    Equally important is equipment placement. When mechanical equipment is positioned with service access and duct connectivity in mind, installers spend less time navigating tight spaces or making last-minute adjustments. That efficiency carries through the entire lifecycle, from rough-in to maintenance.

    ACCA (Air Conditioning Contractors of America) Manual D guidance reinforces this constructability principle- that duct design must consider both airflow performance and installation constraints, including space limitations and coordination with other building systems.

    Standardization: The Hidden Multiplier

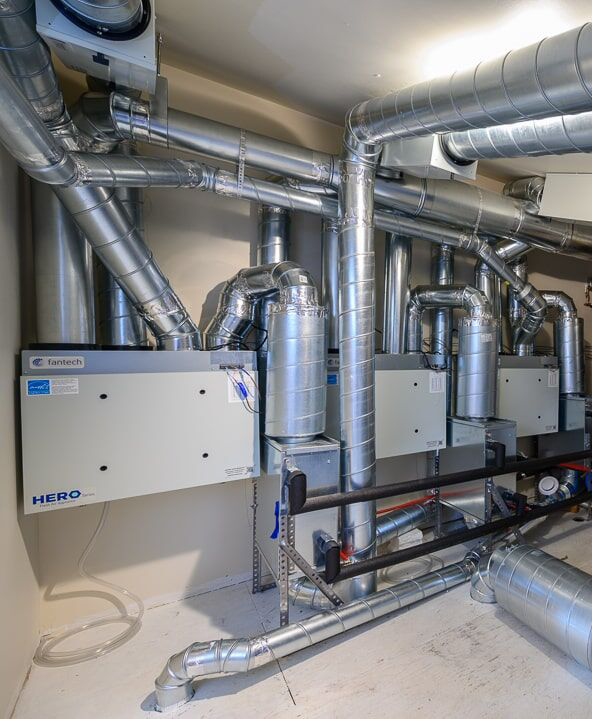

    As projects scale, especially in multi-family housing, the value of repeatable ventilation system design becomes increasingly clear.

    In many apartment buildings, installers may only work with a handful of unit layouts across an entire floor or building. Those layouts are often mirrored or repeated, creating opportunities for more standardized installation approaches.

    The same principle applies in single-family construction. Builders working from a limited set of floor plans benefit when ventilation layouts follow consistent design logic from one home to the next.

    That consistency matters. When installers become familiar with equipment placement, duct routing strategies, and connection points, work becomes faster and more predictable. Familiarity also reduces the likelihood of field modifications that can introduce airflow inconsistencies or balancing challenges.

    The Sheet Metal and Air Conditioning Contractors' National Association (SMACNA) emphasizes that standardized duct construction methods and coordinated system layouts help improve productivity while supporting more consistent system performance across projects.

    This is where scalability becomes more than a design concept; it becomes a construction advantage.

    Reducing Rework and Field Adjustments

    One of the costliest outcomes of poor ventilation system design is rework.

    When systems are difficult to install as drawn, adjustments are made in the field. These changes, while often necessary, can alter airflow balance, increase leakage potential, or create uneven system behavior.

    The U.S. Department of Energy has consistently identified installation quality and duct performance as major factors affecting HVAC efficiency in residential buildings, noting that improper installation can significantly degrade system performance regardless of equipment efficiency.

    In other words, the system may be properly sized and selected, but still underperform due to field conditions.

    Why Commissioning Becomes Harder When Design Isn’t Installation-Friendly

    Commissioning is where design intent is validated, but only if the system was installed in a predictable way. ASHRAE commissioning guidance reinforces this relationship, stating that systems only perform as intended when “properly installed, tested, and verified.”3

    When installation varies significantly from design, commissioning shifts from verification to correction.  Air balancing takes longer, airflow targets become harder to achieve, and adjustments often compensate for upstream design inefficiencies.

    ASHRAE commissioning guidelines emphasize that system performance depends on both proper installation and verification, reinforcing that design, installation, and commissioning are tightly linked rather than independent steps.

    A Shift Toward Installable Design

    Designing for installation is ultimately about shifting perspective.

    Instead of treating installation as the execution phase of a finished design, it becomes part of the design process itself.

    That means considering:

    How ducts will actually be routed in constrained spaces

    How installers will access equipment and connections

    How consistent layouts can reduce variability across jobs

    How coordination with other trades affects final system geometry

    When those factors are integrated early, ventilation system design becomes more robust, not just on paper, but in the field.

    Closing Thought

    A high-performing ventilation system is not defined solely by its specifications, but by how consistently it can be installed, balanced, and maintained across different project types and design layouts.

    When design teams account for installation realities early in the process, the result is fewer field adjustments, more predictable commissioning outcomes, and more reliable long-term performance.

    In the end, the most effective ventilation system design is not just optimized for airflow, it is optimized for execution.

    As ventilation strategies continue to evolve across single-family and multi-family construction, there is increasing value in systems that support both design flexibility and installation consistency. Scalable, modular ventilation approaches can simplify installation by enabling repeatable layouts across different project types. That alignment between design and installation ultimately supports more predictable performance, regardless of project scale or complexity.

    Sources

    1. HVAC School Podcast

    2. Energy Vanguard - Duct Design 2 - Available Static Pressure

    3. ASHRAE Commissioning Resources
